Setting station order in a program

[smninos]

Is it possible to re-order a station within a program? The station’s order seems to be fixed according to how it is physically connected to the controller.

[Ray]

There is partial support for re-ordering stations in a program, for example, based on station names. Please check the user manual:
https://opensprinkler.github.io/OpenSprinkler-Firmware/2.2.1/221_4_manual/#program-name-annotations
It does not support arbitrary re-ordering though.

[smninos]

This would have been sufficient if it had worked as I assumed it would.

I prepended my station names with a number of the order I wanted each station to run. Then I added >n to the program name. The number is ignored and the stations are ordered alphabetically.

Attachments:

1.



[Ray]

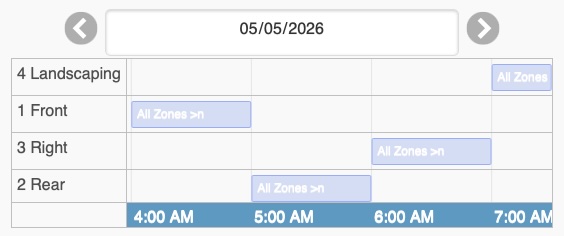

I don’t understand what you mean – from the preview map it looks like the station runs are ordered exactly as your prepended numbers are sorted: 1->2->3->4. Is it not what you intended?

[smninos]

My mistake, you are correct. I failed to look at the graphs and was instead only looking at the list.

Thank you!
