Description

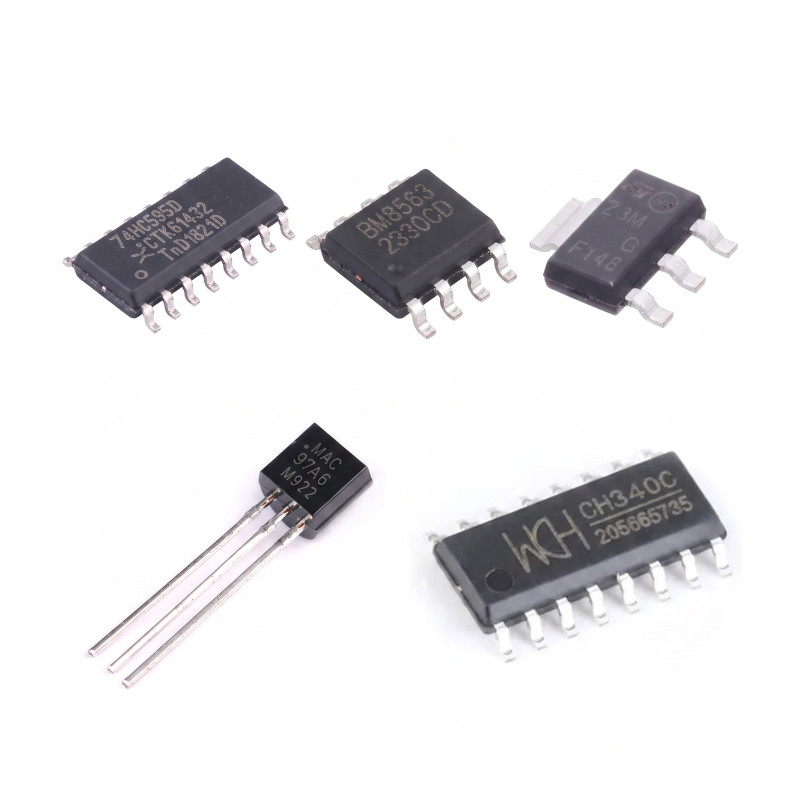

Spare electronic components for repairing OpenSprinkler / OpenGarage, or building your own DIY projects. The list of components are:
| Part Number | Description | Package | Document | Reference Circuits |
|---|---|---|---|---|
| CH340C | USB-to-Serial (UART) adapter/bridge IC | SOIC-16 | Datasheet | OpenSprinkler USB-Serial Programmer |
| MAC97 | Triac (through-hole) for switching AC | TO-92 | Datasheet | OpenSprinkler and OpenSprinkler Pi |
| Z0103MN5AA4 | Triac (SMD) for switching AC | SOT-223 | Datasheet | OpenSprinkler and OpenSprinkler Pi |
| BM8563 | Real-time Clock (RTC), compatible with PCF8563 | SOIC-8 | Datasheet | OpenSprinkler |
| 74HC595D | Shift Register | SOIC-16 | Datasheet | OpenSprinkler Pi |
| XL2001 | 5V/1.8A 150KHz 45V DC-DC Converter | SOIC-8 | Datasheet | OpenSprinkler AC-Powered |
| SLO1040H470 | 47uH/3A Inductor (pairs with XL2001 or XL2011) | SMD1040 | Datasheet | OpenSprinkler AC-Powered |
| PCA9555PW | 16-CH I2C I/O Expander | TSSOP-24 | Datasheet | OpenSprinkler and Expander v3 |
