Name: OpenSprinkler Transformer / Power Adapter
SKU: transformer
Availability: InStock

OpenSprinkler Transformer / Power Adapter

24VAC transformer: compatible with AC-powered OpenSprinkler and OpenSprinkler Pi. This transformer is designed for 110–120VAC outlets only (US/Canada/Mexico). The number of concurrent (i.e. simultaneous/parallel) zones it supports depends on the choice of current rating as well as the specific holding current of your solenoid valves:

• 350mA: 2~3 concurrent zones
• 500mA: 4~5 concurrent zones
• 1000mA: 8~10 concurrent zones

7.5VDC / 2A power adapter: for DC-powered OpenSprinkler v3.0-v3.3 and OpenSprinkler Latch v3.3. The adapter comes with a US plug but supports universal voltage (100~240VAC), suitable for international use with a plug adapter.

Description

Transformers / Power adapters for your OpenSprinkler unit.

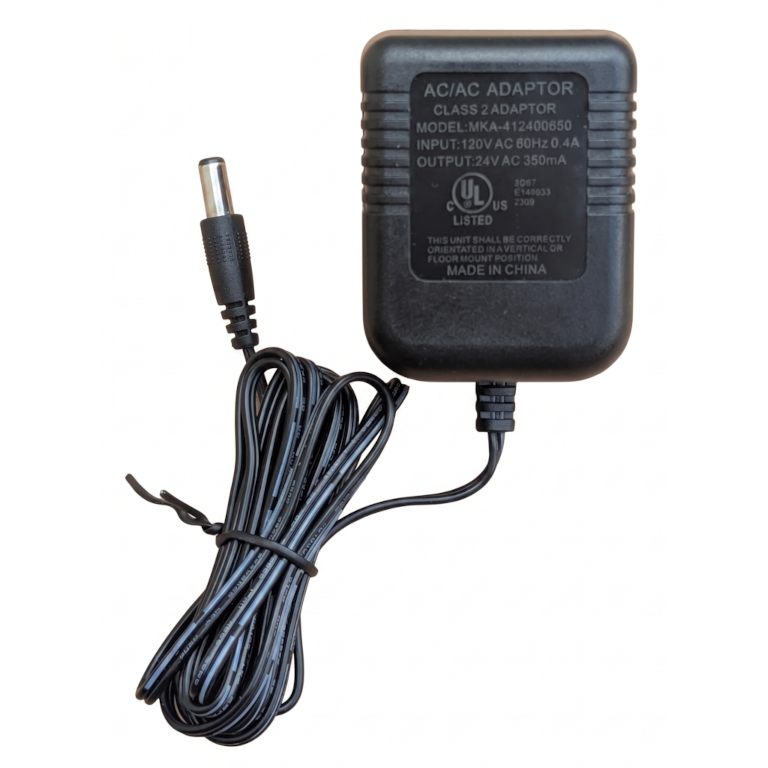

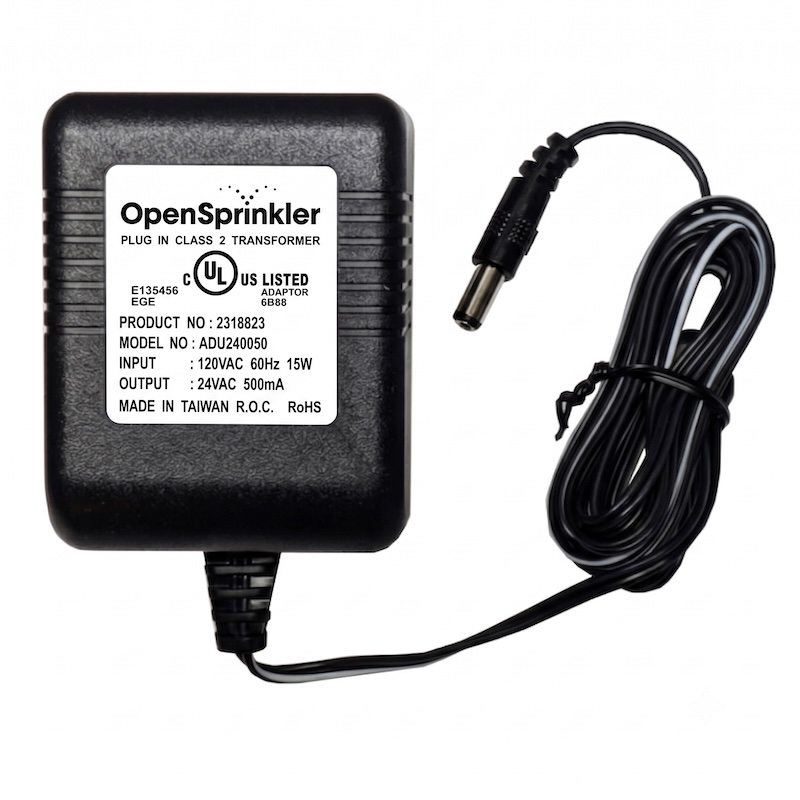

24VAC transformer – compatible with AC-powered OpenSprinkler and OpenSprinkler Pi. This transformer is designed for 110–120VAC outlets only (US/Canada/Mexico). The output voltage is AC 24V. ⚠️ Note: the number of concurrent (i.e. simultaneous/parallel) valves it can support depends on the transformer’s current rating as well as the specific holding current of your solenoid valves:
- 350mA: 2~3 concurrent zones;
- 500mA: 4~5 concurrent zones;
- 1000mA: 8~10 concurrent zones.
- If you need to operate more concurrent zones, we recommend visiting jameco.com and searching for a 24VAC transformer with a 1500mA rating or higher.

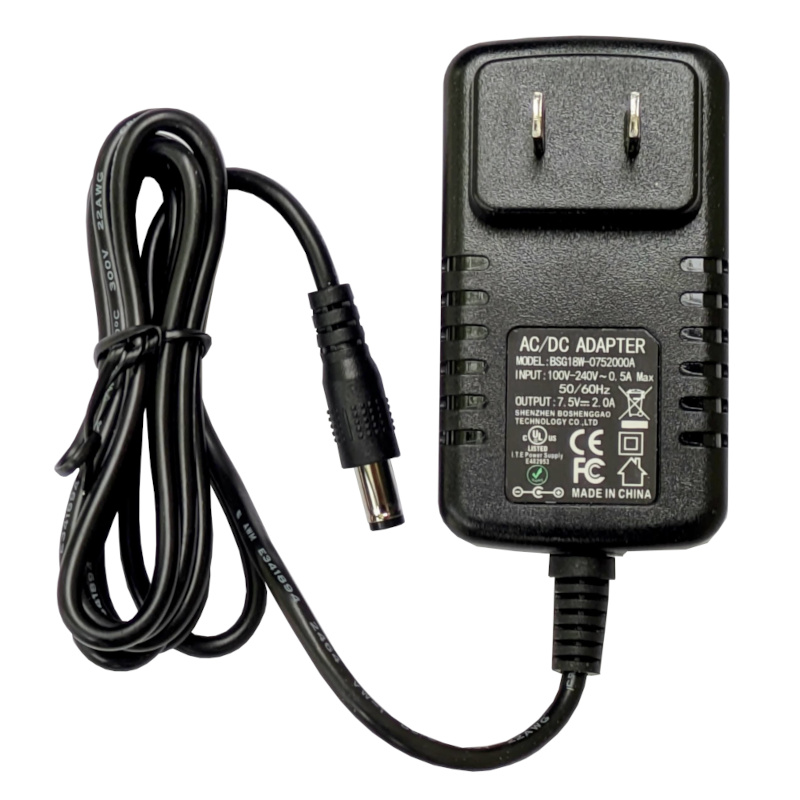

7.5VDC / 2A power adapter: for DC-powered OpenSprinkler v3.0-v3.3 and OpenSprinkler Latch v3.3. The adapter comes with a US plug but supports universal input voltage (100~240VAC), suitable for international use with a plug adapter if needed. The output voltage is DC 7.5V, the maximum output current is 2A (2000mA)

Additional information

Weight	1.0 lbs
Dimensions	4.5 × 3 × 3 in
Type	24VAC / 350mA (110~120VAC outlet only), 24VAC / 500mA (110~120VAC outlet only), 24VAC / 1000mA (110~120VAC outlet only), 7.5VDC / 2A (US plug, universal input voltage)
